Luzchem LZC Photoreactor Packages provide complete UV and visible light irradiation systems designed for research and teaching laboratories. Each package combines a high-quality LZC photoreactor with carefully selected lamps and accessories to support common photochemical applications right out of the box. With spacious air-cooled chambers, integrated safety features, and flexible illumination configurations, these systems offer reliable and uniform irradiation for photochemistry, photobiology, organic chemistry, and materials research. Multiple package options allow researchers to select the configuration that best matches their experimental needs.

LZC Photoreactor

$11,620.00 USD

Sale Sold out

Shipping calculated at checkout.

Photoreactor Type: LZC-4V Package

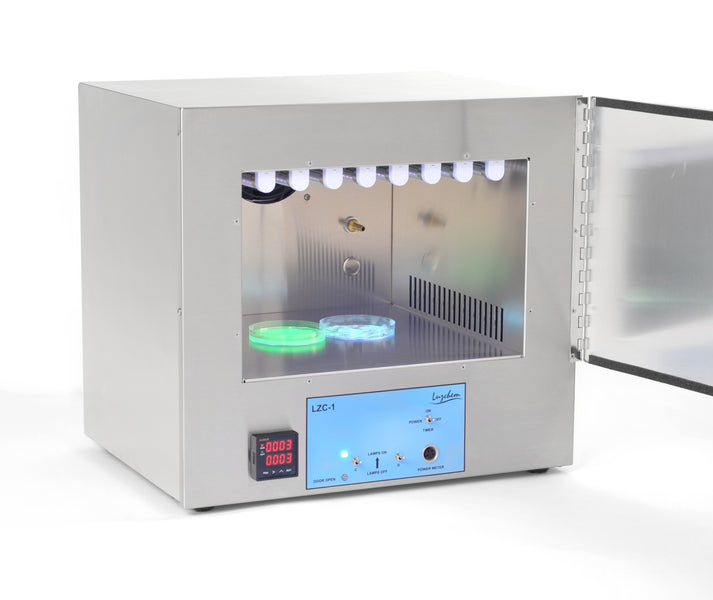

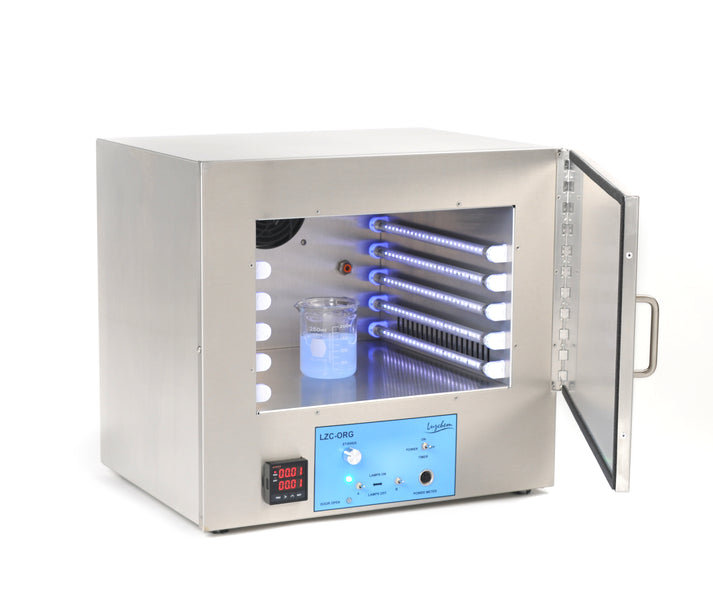

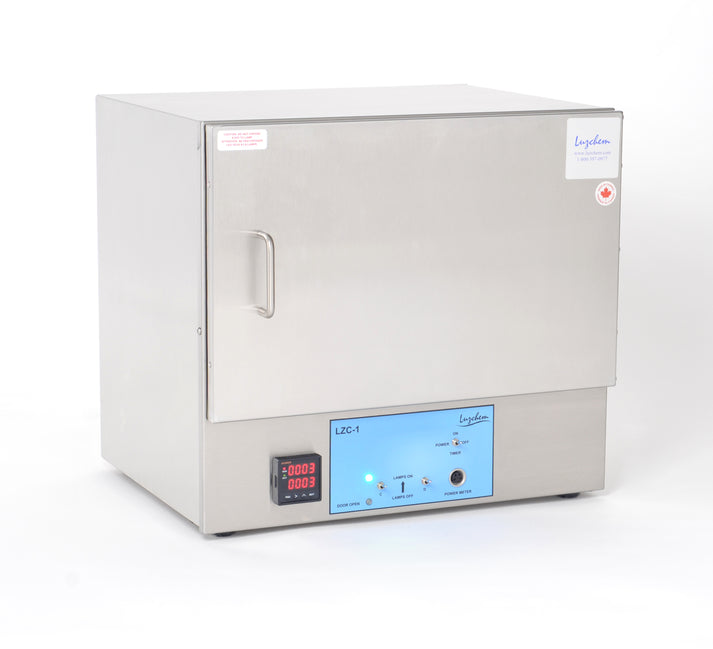

LZC-4V Package LZC-4X Package LZC-ORG Package LZC-1 with 367-UVA lamps

4V Package (Our most popular option)

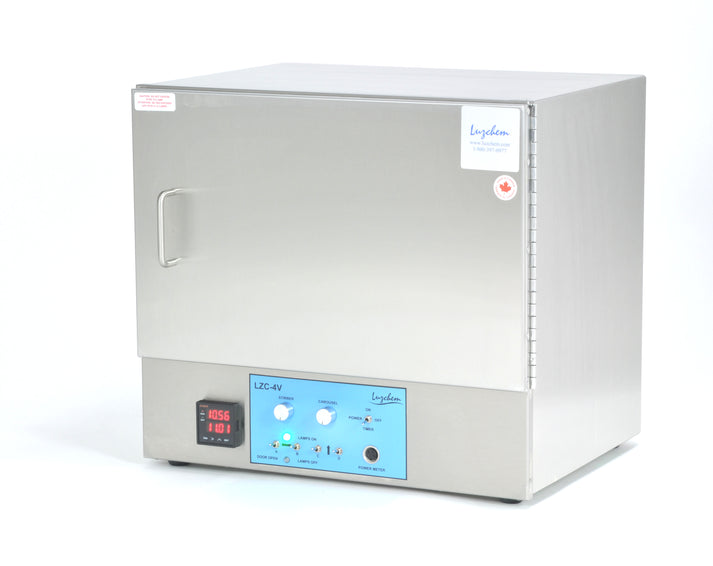

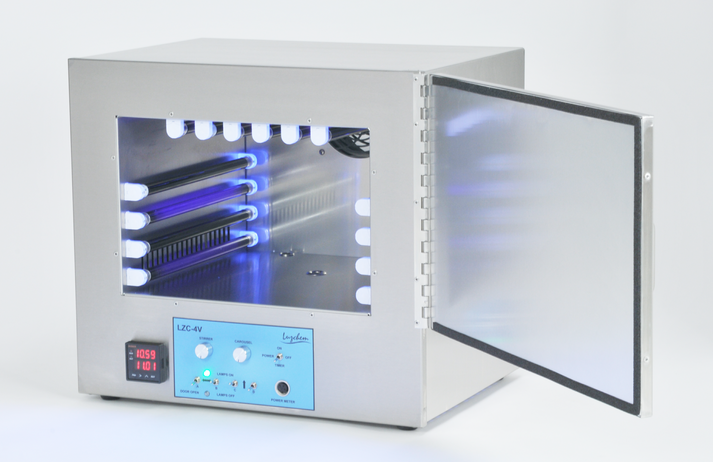

The LZC-4V chamber setup consists of six lamps at the top and eight on the sides. The photoreactor features an integrated drive motor, magnetic stirrer, timer, gas inlet, hour meter, and safety interlock. Additionally, the package includes a carousel for test tubes and a turntable for solid samples to use with the motor drive. The package also comes with two complete sets of lamps, 14 UVA (367nm) and 14 UVC (254nm), a UVA power meter, an exhaust kit, and UV protecting safety glasses. This is our most popular photoreactor package.

Luzchem’s LZC Photoreactor Packages are complete closed-chamber benchtop irradiation systems designed specifically for use in research and educational laboratories. Each package includes an LZC photoreactor combined with lamps and essential accessories to support a wide range of photochemical experiments while providing reliable and reproducible light exposure. The reactors feature spacious 12 × 12 × 8.5 inch air-cooled chambers, allowing uniform irradiation of multiple samples while maintaining a safe and controlled working environment.

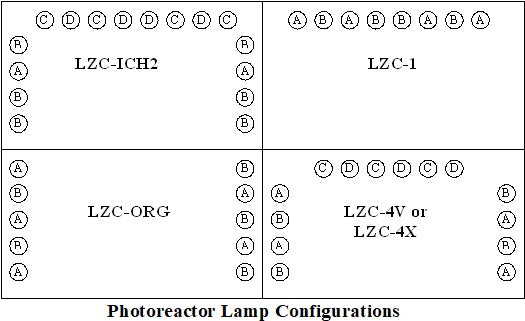

All LZC photoreactor packages include key operational and safety features such as a safety interlock, integrated timer, hour meter, bulkhead gas connector, safety glasses, and a safe exhaust system. The units operate on 120/240 V power and are designed for convenient bench-top use in laboratory environments. Depending on the selected package, reactors may include top lamps, side lamps, or combined top-and-side illumination, enabling researchers to optimize irradiation geometry for their specific experiments.

These photoreactor packages are compatible with Luzchem’s full range of LZC-Series UV and visible fluorescent and LED lamps, which are also compatible with many Rayonet reactors. Widely used in photochemistry, photobiology, organic synthesis, materials science, and teaching laboratories, LZC photoreactor packages provide a versatile and dependable platform for controlled light exposure experiments.

Additional accessories, lamp options, and custom configurations are available to support specialized research requirements. For further information or customized solutions, please contact our team at . Published exposure standards and spectral information are available, and the latest instrument manual can be downloaded here.
