Luzchem VIS-Titan is a compact, high-intensity visible LED source designed to deliver powerful and precise illumination for laboratory applications. Using advanced LED technology and precision optics, the system produces a collimated beam available in multiple wavelengths including blue, green, red, and white, allowing researchers to select the optimal spectral range for their experiments. Its ultra-compact design and efficient cooling system make it easy to integrate into a wide variety of laboratory setups while maintaining stable performance. The VIS-Titan provides an affordable and reliable solution for laboratories requiring high-power visible light illumination in a small footprint.

VIS Titan

$2,430.00 USD

Sale Sold out

Shipping calculated at checkout.

Colour: RED

RED BLUE GREEN COOL WHITE

Red Titan (620–630 nm): The red model delivers strong, concentrated visible light with measured peak irradiance of approximately 180 W/m². It is ideal for users seeking intense red illumination in a compact, easy-to-integrate source with a tightly controlled beam profile.

The Luzchem VIS-Titan is a miniature yet powerful visible light irradiation system engineered for research applications requiring concentrated and controlled illumination. Built using modern high-power LED technology, the VIS-Titan delivers intense and stable visible light while maintaining a compact benchtop footprint suitable for flexible experimental setups.

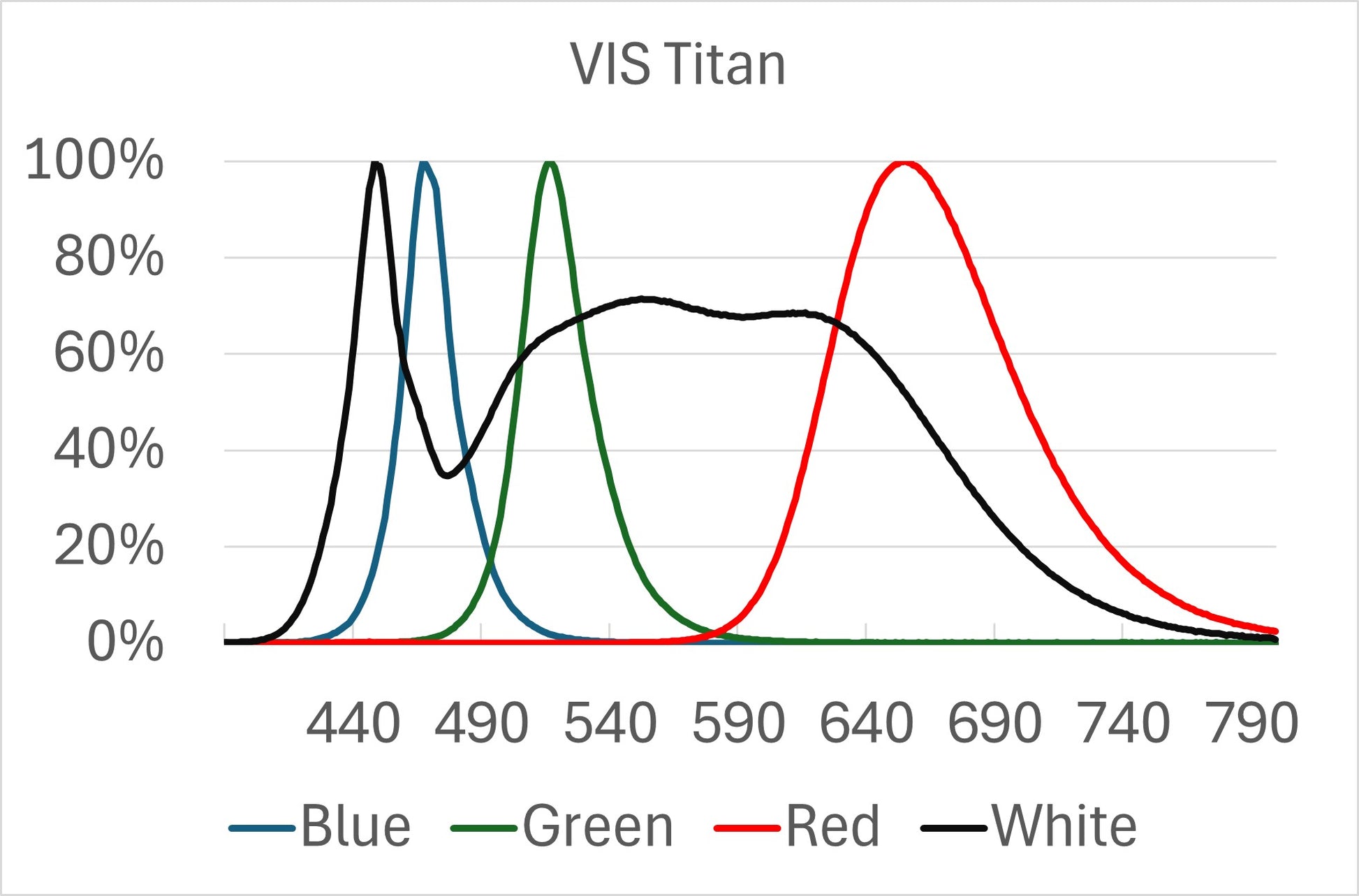

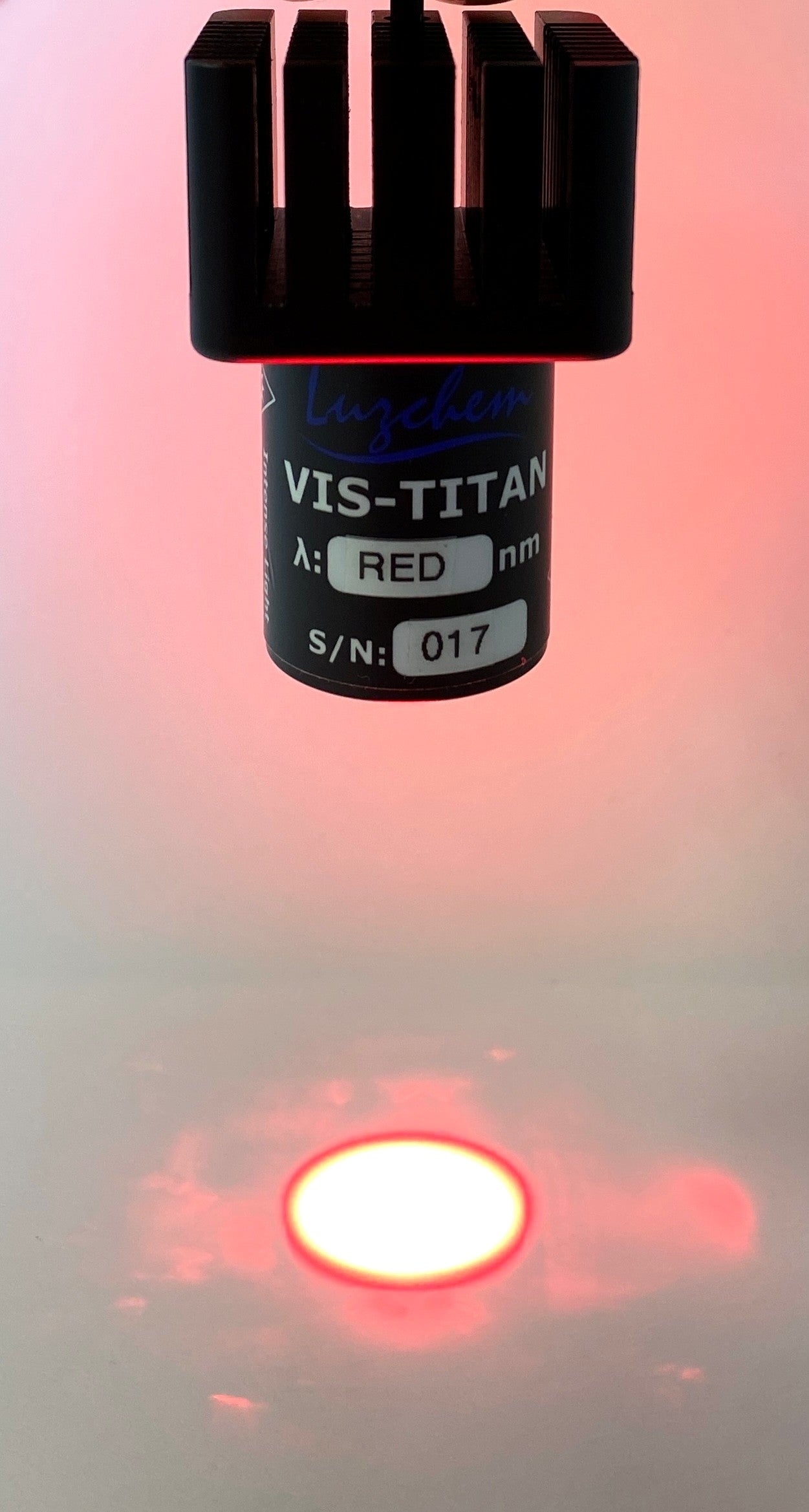

The instrument produces a collimated beam approximately 18 mm in diameter at a typical working distance of about 140 mm, providing precise and efficient irradiation of samples. Multiple wavelength options are available, including Blue (450–460 nm), Green (520–535 nm), Red (620–630 nm), and Cool White, enabling researchers to tailor the spectral output to their specific experimental requirements. Additional wavelength options may be available upon request.

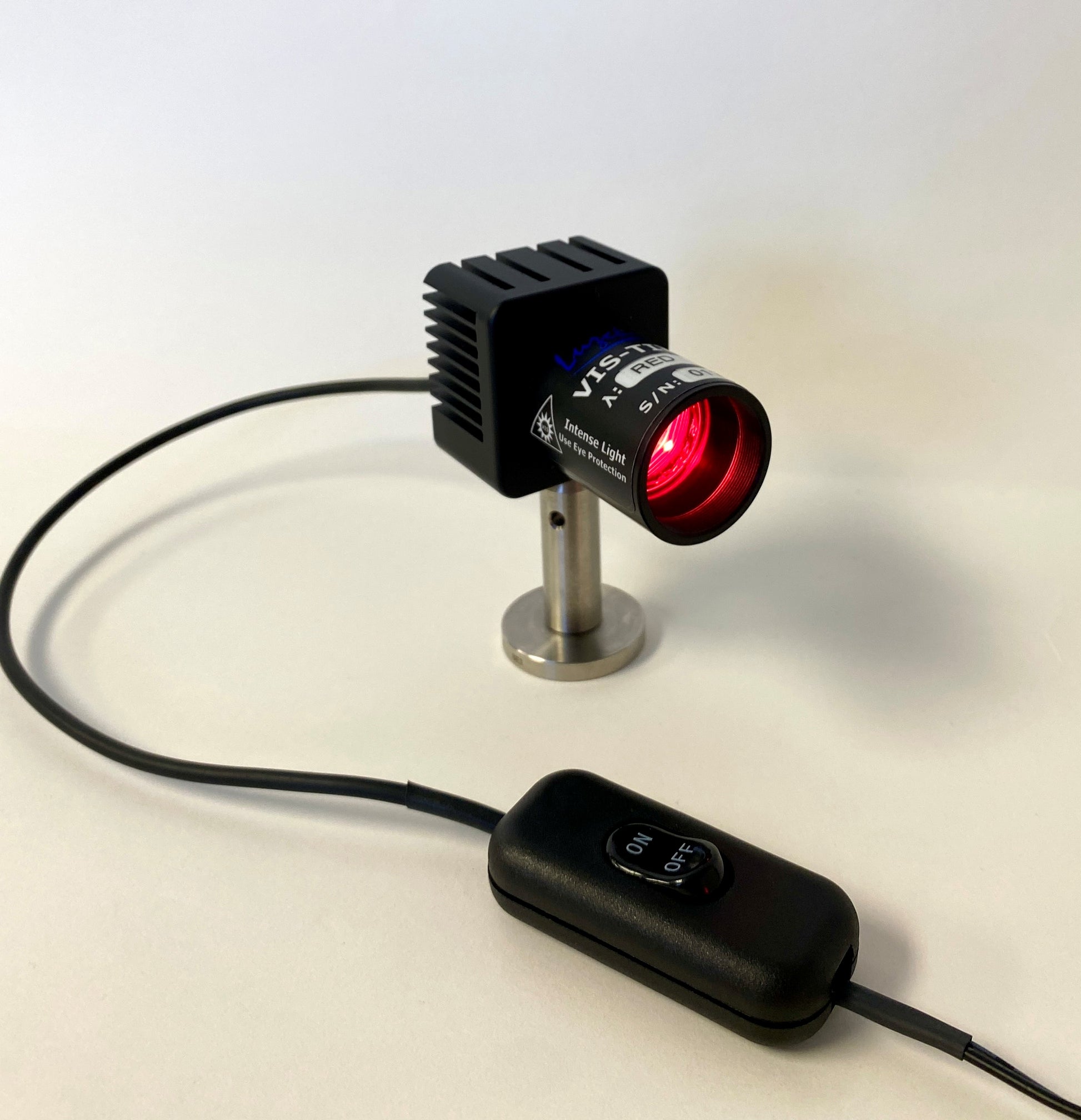

Despite its compact size—approximately 2 × 2 × 3 inches (51 × 51 × 76 mm)—the VIS-Titan delivers significant irradiance suitable for demanding laboratory applications. Passive cooling and onboard temperature management ensure stable operation and long-term reliability during extended experiments.

The VIS-Titan is designed for versatility across many scientific disciplines, including photochemistry, photobiology, materials testing, photocatalysis, and exposure studies. Each unit includes LED-blocking safety glasses to help protect users when working with high-intensity light.

With its combination of high power, compact design, multiple wavelength options, and reliable LED technology, the VIS-Titan provides a convenient and cost-effective solution for laboratories requiring focused visible light irradiation in a small and portable system.

For the Exposure standards visit our exposure standards page.

Blue (450-460 nm) - 2,700 W/m2

Green (520-535 nm) - 920 W/m2

Red (620-630 nm) - 500 W/m2

Cool White - 1,360 W/m2

Dimensions: 2 x 2x 3 inches (51 x 51 x 76 mm)

Power Required: 110/240VAC, 0.15 A

Working Distance: 3.5 - 10+ inches

For more information download our Product Sheet.
