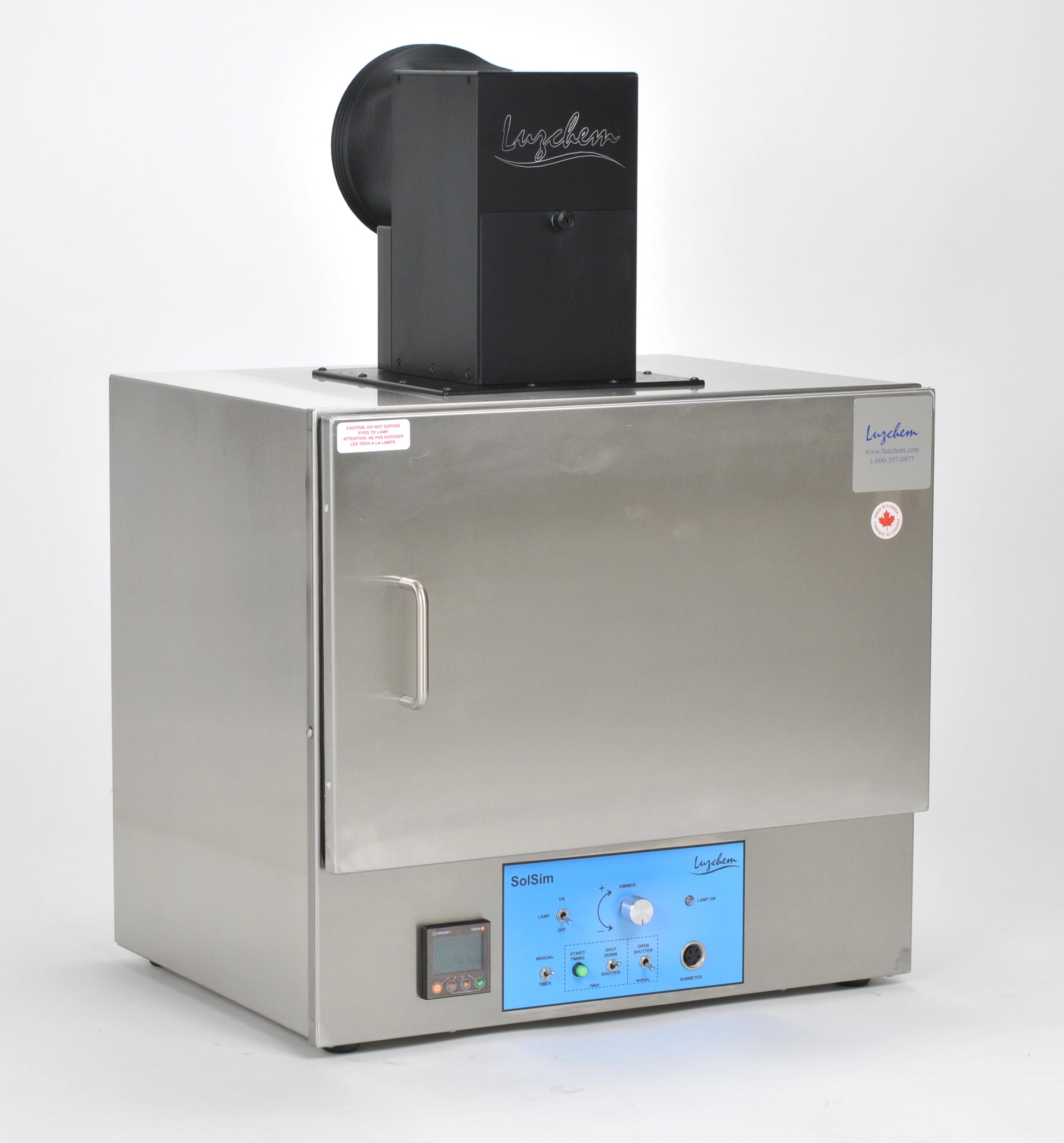

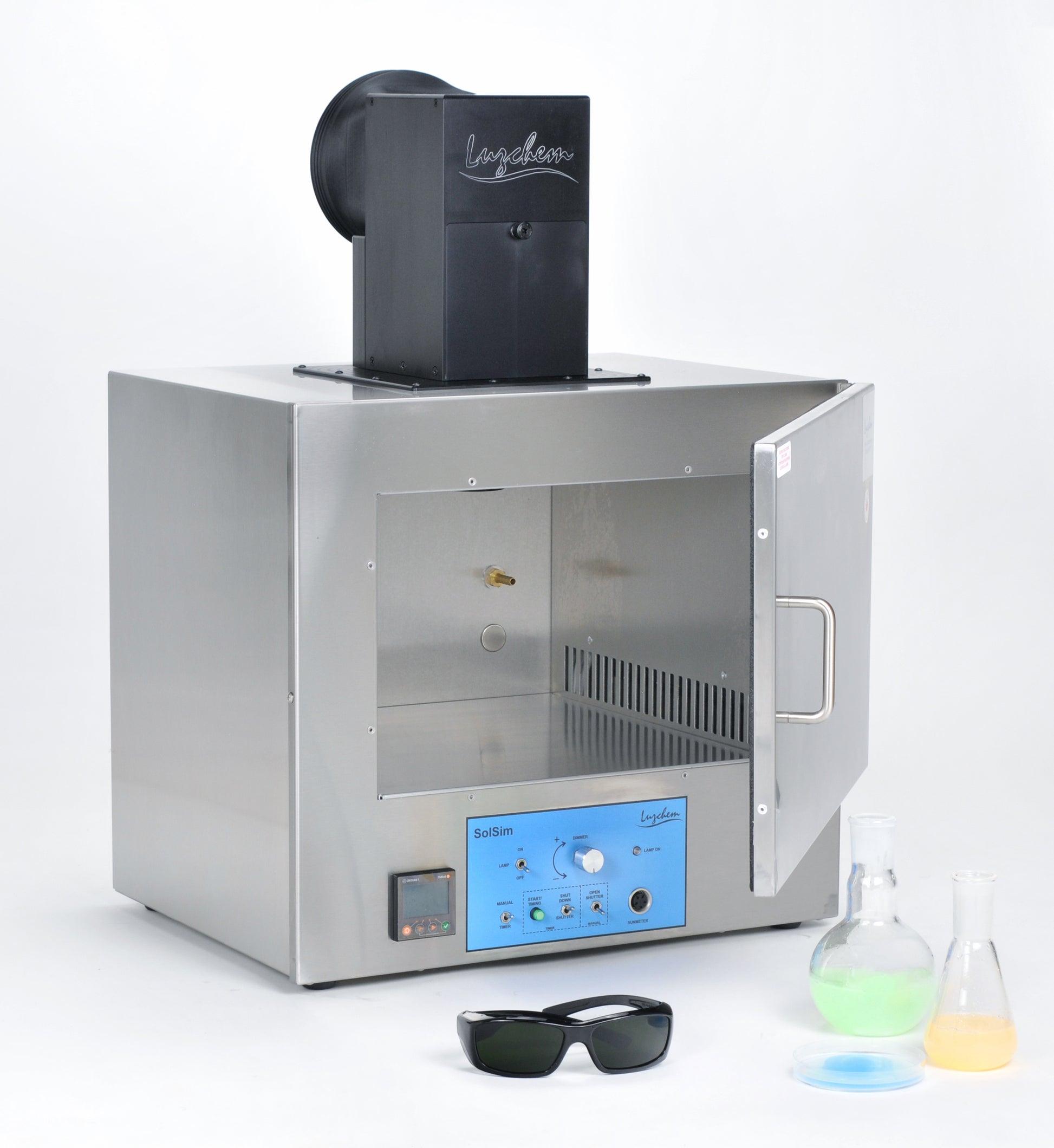

SolSim2 is the ultimate solution for solar simulation! Our state-of-the-art simulator is designed to match the ASTM G173-23 AM1.5 solar spectrum over the spectral interval of 310-800 nm, which is among most commonly referenced solar spectrum. With an ozone-free design, Solsim2 is ultra-convenient to set up, as ventilation is not required unless your experimental byproducts require it. The comprehensive package includes a powerful 300 W xenon lamp, variable output power, and all the required filters for matching the AM1.5 solar spectrum. The chamber also includes a bulkhead connector for gases or liquids, an integrated shutter, and an automated experiment timer, and a door interlock to keep you safe. The unit has a chamber door interlock and comes with safety glasses and an integrated chamber exhaust with tubing for maximum safety during use. SolSim2 also includes a calibrated Light Meter (Sunmeter) for AM1.5 matching, as well as the relevant solar spectral data. With Luzchem’s Solsim, you can be confident that you are getting accurate and reliable solar simulation.
Couldn't load pickup availability
The Luzchem Xenon Photoreactor is a high-performance system designed for precise photochemical reactions, it features a powerful 300W ceramic xenon arc lamp for broad-spectrum, intense light output. The lamps integrate high-efficiency reflectors to enhance luminous efficiency, providing exceptional light distribution for consistent and accurate results. With adjustable lamp output, users can fine-tune light intensity to meet the specific needs of their experiments.
The xenon photoreactor includes an integrated shutter that allows users to shield their samples from light when not needed while ensuring lamp stability. and a programmable experiment timer to ensure accurate timing of irradiation processes. Every kit has UV-protecting safety glasses, a chamber bulkhead connection for gas and liquid inputs, and an exhaust hookup for safe operation in laboratory environments.
These reactors are frequently used in pharmaceutical labs and for photovoltaic development/testing.
Options include Solar Simulating, ICH1, and standard Xenon lamp photoreactor chamber. Chambers use focused lamps and are available in full UV or ozone-free.

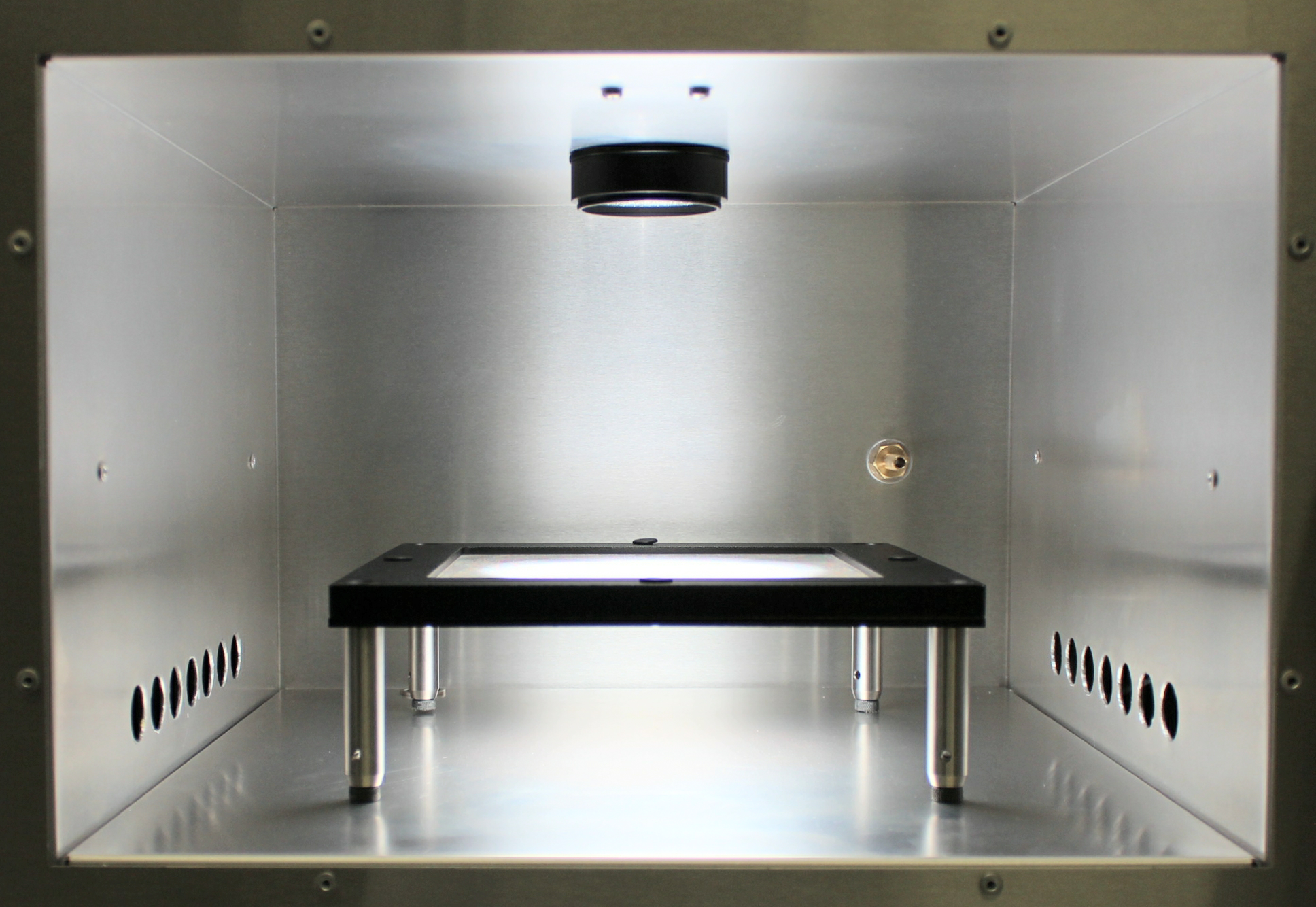

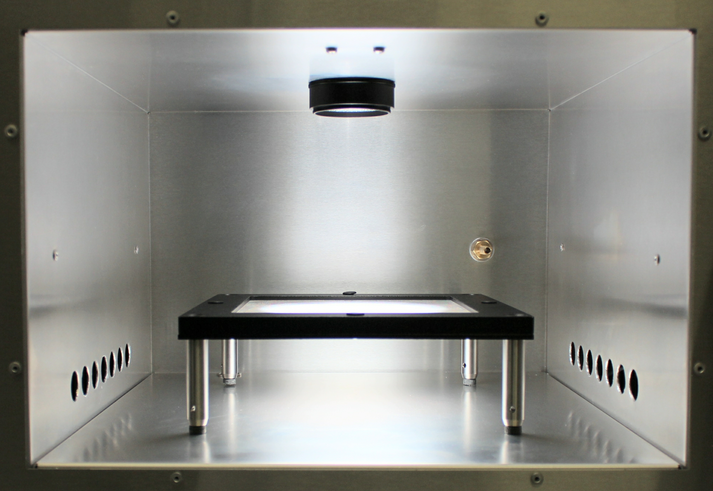

The interior of the chamber shown in picture 3 is the SolSim2 setup.
